Description

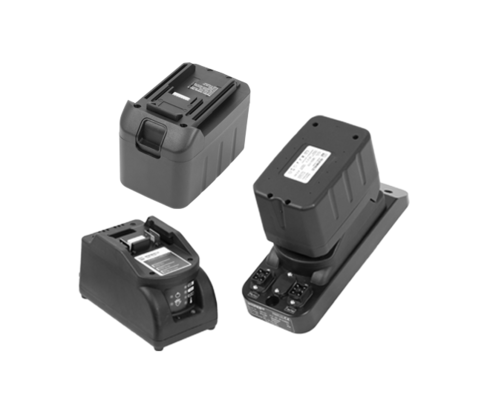

M 8.201 Energy supply for mobile systems

Control module with battery holder for moduhub modules

Application
The individual components are used for power supply for mobile systems in industrial assembly. They are suitable for electro-mechanical lifting modules or linear actuators with 24 VDC.

Description
A system with different individual components allows a network-independent power supply for electrical lifting modules. A rechargeable battery supplies the drive unit with energy. The battery can be recharged by an external quick battery charger.
To guarantee working without downtime, it is recommended to have a second rechargeable battery. Control modules with battery holder for a single module are used to control lifting modules.
Various operating elements allow an efficient functionality.
The following modules are required for an operational system:

  • Rechargeable battery
  • Control module with battery holder
  • Operating element
  • Quick battery charger
  • Lifting module


Variants
The standard variant provides the functions  “up / down“ in touch control.
All variants are designed for the operation with lifting modules with code letter B or I.
The integrated electronic ensures in combination with the stroke measuring system of the lifting modules a soft start and stop to protect all components.
Also, current limitation and duty cycle limitation help to increase the service life.
Further variants of the control modules with battery holder allow the function of storable intermediate positions.
Individually pre-programmed end positions can be requested as a special version.
