moduLift
Stationary Assembly Fixture, electrically operated
Application

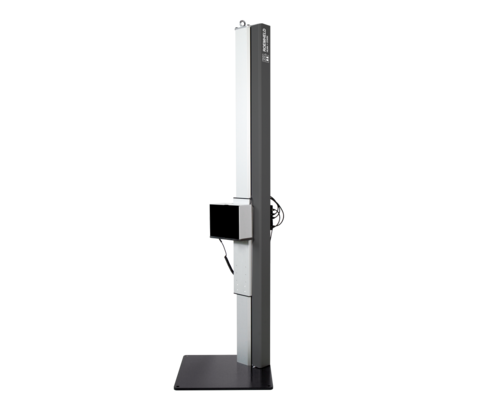

The moduLift is a stationary, electrically operated assembly fixture for workpieces weighing up to 40 kg. Up to 80 kg can be lifted without an electrical rotation axis.
Description
Due to its sturdy, industrial quality design moduLift can be used for both assembly and repair.
The lifting and rotation axis are electrically operated. Both axes are operated with a common hand panel. Since both axes are self-locking, each set position is held securely.

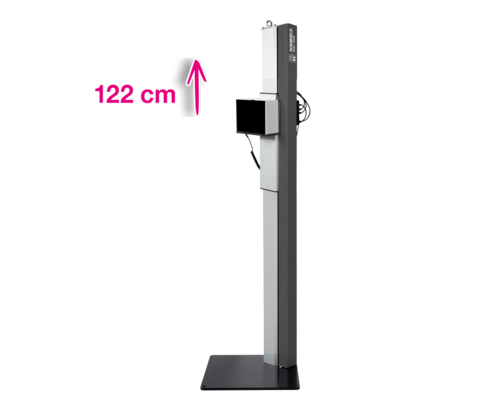

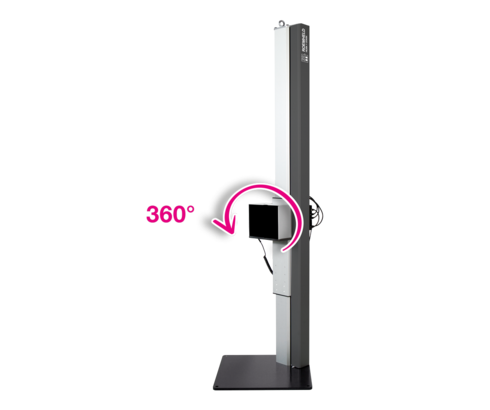

A large stroke of 1225 mm makes it possible to lift the workpieces from the ground and bring them to an optimal assembly height. The rotation axis allows endless rotation at any height. The lifting axis has a shutdown function if a collision occurs during lowering.
Operation
Operation is via a hand panel that actuates the functions "Up/Down" and "Rotate left/Rotate right" ("Up/Down" only with 6415 834). There is a holder on the slide for hanging the hand panel. The cable is approx. 2 m long when slackened.
Mounting to the ground
The assembly fixture must be screwed to the floor, wall or ceiling in order to comply with the CE certification. For firm standing, the base plate must be bolted to the floor (min. concrete strength class C 20/25). With larger base plates (available on request), the assembly fixture can also be used free-standing.
Alternatively, the modu Lift can be fixed with the wall and ceiling mounting set. In harsh environmental conditions, however, it is always advisable to attach it to the floor.
Versions
• with lifting and rotation axis: up to 40 kg
• with lifting axis (without rotation axis): up to 80 kg
Accessories on request
• Larger base plates
• Special clamping and mounting fixtures
Advantages
● Safe working environment thanks to self-retaining axes with 1225 mm electrical stroke and 360° electrical rotation axis
● Universal use with moduhub interfaces
● Compliant work due to design according to the EC Machinery Directive
● Collision shutdown
● Ergonomic working through best accessibility thanks to force-free rotation of the workpiece with electrical rotation axis
● Play-free guidance
● 15,000 cycles durability tested
