Módulo de elevación Range

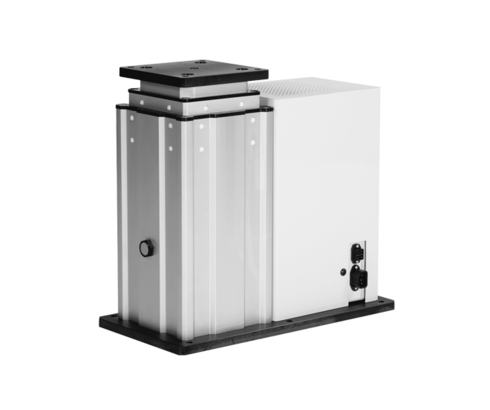

Double telescopic lifting module for workshop applications in the industry

The drive of the telescopic lifting module Range consists of a 230 V A.C. motor and a spindle drive with trapezoidal spindle. A motor brake in combination with the trapezoidal spindle guarantees safe holding of the driven position.
The telescopic guide unit consists of a precise aluminium profile section with a pre-stressed plain bearing with low friction and without clearance for exact positioning.
The compact construction with low height and small width guarantees an unhindered accessibility to the workpiece from all sides. Mechanical and electric interfaces can be easily integrated in the process of automation.

Operation
The operation is made by hand panel or foot switch or alternatively by a primary electric control. Lifting and lowering is triggered by pushbuttons with touch control contact. After release of the push-button, the motion will be immediately stopped.


Advantages
 ● Low basic height
 ● Good accessibility
 ● Very high flexibility
 ● Improved productivity
 ● Simple integration
 ● Optimised ergonomics
 ● Simple operation
