Módulo de giro DMHe 200 / DMVe 600 – accionamiento eléctrico

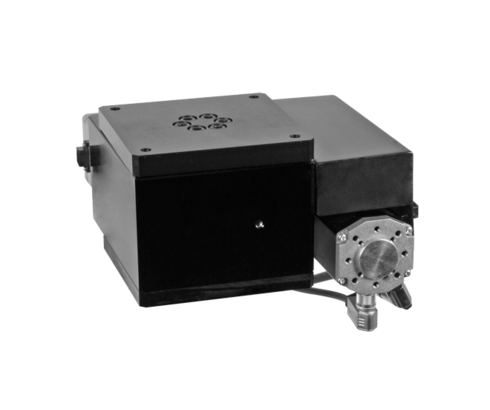

horizontal axis DMHe 200 - electrically-operated

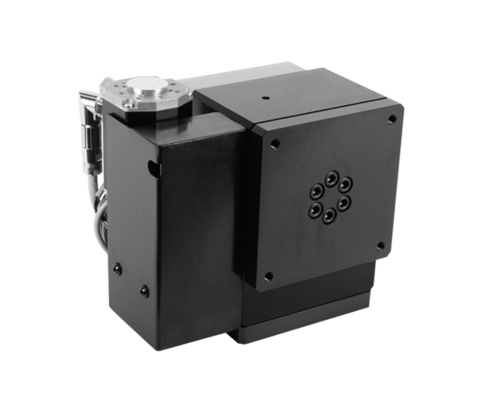

vertical axis DMVe 600 - electrically operated

When using the rotating module, component parts can be rotated rationally, quickly and safely and can be assembled ergonomically from all sides. The strongly reduced worm gear allows high holding torques in standstill. The double-bearing drive shaft compensates high axial and radial forces.
The rotating module is designed for a long service life. The electronically commutated DC motor is virtually wear-free. The mechanical components and sealing elements are designed for 1,000,000 indexing cycles within the indicated load limits.
The rotating modules – horizontal axis and vertical axis are nearly identical in construction, thus the axis alignment can be retrofitted for different applications.

Operation
The module is operated with touch control by means of an optionally available hand panel or foot switch with two push-buttons. It can safely stop in  every angular position. An automatic stop is preset at all 90° positions.
The zero position of the automatic stop can be preset to any position by pushing both push-buttons.

Advantages

• Versions for horizontal or vertical axis of rotation
• Rotating in both directions
• Auto stop
• Low-backlash gear
• Self-locking in any position
• Compact design
• Sturdy design
• Convertible
• Ergonomic working
• Safe and quick handling in assembly processes
• Long service life
• Checked in compliance with DIN EN 1570 with quadruple static overload
