Series
M6.101

Módulos base soporte

for 1 or 2 moduhub lifting modules
Módulos base soporte
Descargas
Hoja del catálogo
Instrucciones de servicio
Sobre demanda.
Informaciones de la serie
Description

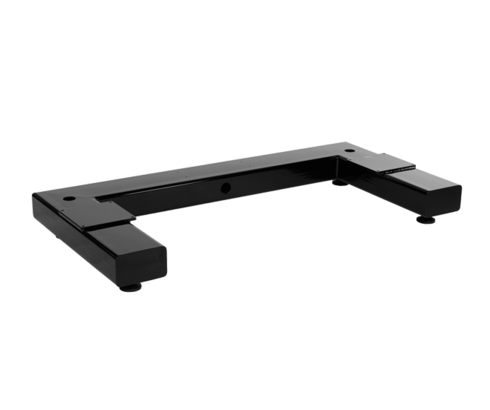

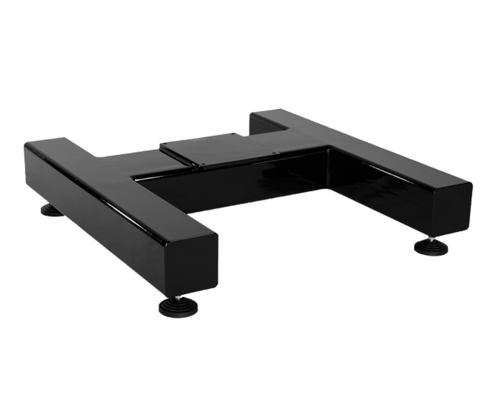

Floor modules

Application
Floor modules for use as base frame for height-adjustable working places. Working stations or height-adjustable working tables can be easily realised with floor modules combined with lifting units. They are a stable base that can be adapted to uneven floors for further setups with high stability.


Description
The floor modules consist of a welded, stable steel frame with four height-adjustable feet. The adjustable feet have a steel thread and are equipped with a stable spherical cap. In the centre of the steel frame a mounting plate with a modulog interface 200 x 200 is fixed. This plate is used to fix modulog modules. Alternatively workshop setups can be mounted at the steel frame.
