Series
B1.9472

Threaded-Body Work Supports

Articles and prices on request
with metallic wiper edge, shaft length 20 – 100 mm,
single and double acting, max. operating pressure 70 bar
Threaded-Body Work Supports
Downloads
Catalogue sheet
Operating instructions
Information Series
Description

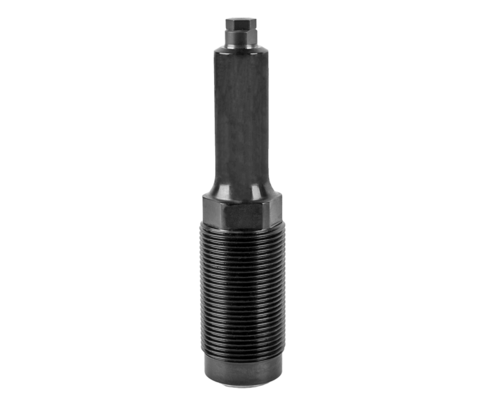

B 1.9472 Threaded-Body Work Supports

Hydraulic work supports are used to provide a self-adjusting rest for workpieces and avoid their vibration and deflection under machining loads.
This series offers high support forces already at 70 bar and can directly be connected to the low-pressure hydraulics of the machine tool.
The selectable extension with a shaft diameter of only 16 mm enables the support of surfaces in recesses and cavities that otherwise would be inaccessible.
In case of the double-acting version, the return stroke of the support plunger is effected in a precisely defined time, that is above all advantageous in cycle-dependent installations.

The support plunger is hydraulically extended and retracted by means of a small single or double-acting cylinder. Contact to the workpiec  is made by spring force. The pressure spring can be easily exchanged. The support plunger is additionally guided in the area of the shaft diameter and can therefore absorb side loads up to 300 N.

The support plunger is retracted in off-position. When pressurised, the piston of the single or double-acting cylinder extends against an internal stop and the support plunger contacts the already clamped workpiece with spring force.
With continuing pressure increase, the conical hydraulic piston moves downwards. The support plunger will be radially locked by the slotted locking bush using a low-friction spherical shell and can then absorb load forces in axis direction.
For unclamping, hydraulic pressure will be released. The conical hydraulic piston is pushed upwards by spring force, whereby the locking of the support plunger disengages.
The single-acting piston retracts the support plunger with spring force to its off-position. This takes place quicker with the double-act-ing version.

Accessories (3)
Article available on request
On request, we will check whether the article is still available
Item no. CAD data Description
Item no.
CAD data
/
Description
Seal kit, external seals for - NBR for work supports 1947110XXXXXXX (double acting) as per data sheet B1.9472
Item no.
CAD data
/
Description
O-ring 10.82 x 1.78 mm as per data sheet B1.9472
Item no.
CAD data
/
Description
O-ring 21.95 x 1.78 mm as per data sheet B1.9470
