When rebuilding high-quality engines and gearboxes, precision, safety and ergonomics are essential. Whether inline or V-type engines, high-performance power units, Wankel engines or heavy gearbox units – components must be held securely and positioned flexibly during assembly, testing and rebuild work.

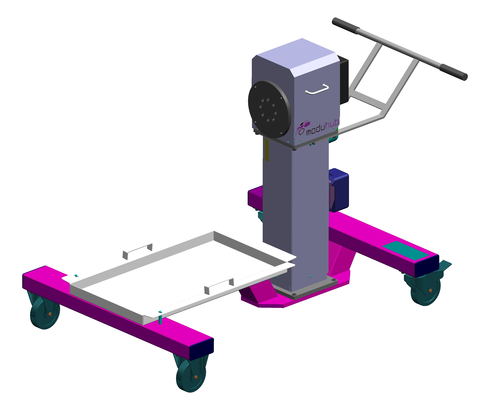

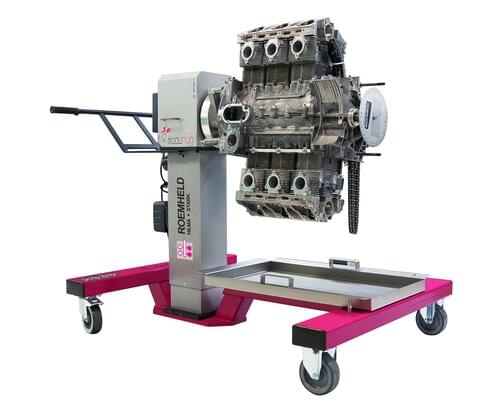

The mobile Engine Stand Pro has been specially developed for professional workshops, engine builders and motorsport applications. With an electric rotation axis, electric lifting function and backlash-free positioning, it enables the controlled and ergonomic handling of heavy engines and gearboxes weighing up to 400 kg.
The combination of precise positioning, high stability and mobile operability supports efficient workflows during assembly, revision, measurement and test bench preparation.
The Engine Stand Pro is particularly suitable for:
- professional engine rebuilds
- high-performance workshops
- engine builders
- Motorsport and service workshops
- Restoration companies and classic car workshops
- Specialist engine construction
- Gearbox maintenance
- Test bench preparation
- Prototype and small-batch production
- Development workshops
- OEM-related applications
- E-mobility and drive unit assembly
Suitable for a wide variety of workpieces weighing up to 400 kg:
- In-line and V-type engines
- High-performance and racing engines
- Wankel engines
- Industrial and specialised engines
- Heavy grey cast iron and aluminium engines
- Electric motors and electric axles
- Hybrid drive units
- Gearbox units
During an engine or gearbox rebuild, components often need to be moved into different working positions. Safe and precise positioning is essential for assembly work, measurements, testing or machining areas that are difficult to access.
Conventional engine stands quickly reach their limits in this regard:
- unergonomic working heights
- considerable effort required when rotating
- inaccurate positioning during assembly
- restricted access to individual assemblies
- high physical strain during repetitive work processes
- increased risk of damage to the engine or attached components
The Engine Stand Pro has been developed to rotate engines in a controlled manner, align them ergonomically and hold them safely in any position. This simplifies assembly processes and improves access to all relevant assemblies.
- Max. load capacity: 400 kg
- Max. bending moment: 2000 Nm
- 400 mm stroke
- Continuous rotating movement
- Electric rotating axis
- Electric lifting function
- Battery power supply
- Self-locking in any position
- Backlash-free axes
- Mobile use
- CE-certified
- Maintenance-free design
More Information
What are the advantages of an electric engine stand?
Electric engine stands significantly reduce the physical effort required and enable the precise, controlled positioning of heavy engines. Rotation and lifting functions improve ergonomics, safety and efficiency during assembly and reconditioning work.
For which engines and drive units is the engine stand suitable?
The Engine Stand Pro is suitable for all engines and gearboxes weighing up to 400 kg, including:
- In-line and V-type engines
- High-performance and racing engines
- Wankel engines
- Heavy aluminium and grey cast iron engines
- Electric and hybrid engines (e-axles, drive units)
- Gear units
For which applications is a heavy-duty engine stand used?
Heavy-duty engine stands are used in engine and gearbox reconditioning, in specialist engine construction, for test bench preparation, and in development, restoration and high-performance workshops.
Why is precise, play-free positioning important?
A backlash-free design ensures maximum control during assembly and overhaul work. It reduces unwanted movements, increases safety and protects sensitive motor and component surfaces.
What advantages do the electric rotating and lifting functions offer?
Electric rotating and lifting axes enable ergonomic working without physical strain. Motors can be positioned precisely, which significantly improves access, accuracy and working speed.
What advantages does the motor stand offer over traditional motor stands?
Compared to traditional motor stands, the motor stand offers significantly greater safety and efficiency thanks to electric axes, greater stability under heavy loads, play-free movement and ergonomically optimised work processes. The solid base frame ensures that the stand remains stable and does not slip, even during demanding tasks. The large castors allow the engine stand to be easily moved to different workstations within the workshop.
Would you like to position heavy or high-quality engines safely, precisely and ergonomically?
We would be happy to advise you on
- possible applications
- technical details
- customised adaptations
- special solutions
- typical motorsport and workshop applications
