Systems - Römheld

moduhub systems

for handling technology

On this page we show you some systems or functional units of moduhub components for handling technology. You can filter the systems according to the following criteria:
Industry: Industry in which the system can be used sensibly as a priority.
Function: Lifting, rotating (horizontally or vertically) and tilting or a combination of several functional axes.
Mobility: Stationary or mobile (movable) system.
Max. Load (kg): Maximum load or workpiece weight with which the system is to be loaded.

Please select:

Industries

Function

Mobility

Max. load (kg)

6400871

Assembly and logistics trolley

Assembly and logistics trolley
For workpiece weights up to 400 kg

Part number: 6400871

Lifting module with foot pump and 300 mm stroke
Table top can be rotated infinitely by means of DMv
A self-locking index position optimally enables the machining of rotationally symmetrical components.
Round steel table top
WMS 600 steel trolley module with coupling brake (one-foot operation) and 4 castors

6400880

Stationary assembly station

Stationary assembly station
with lifting and turning functions
For workpieces up to 150 kg

Part number: 6400880

Lift 800 mm with lifting module ShopFloor telescope with electric drive
With vertical rotation axis DMv
Index with 8x45° manually unlockable with foot pedal
Stable stand on base plate 500x750 mm made of steel

6400907

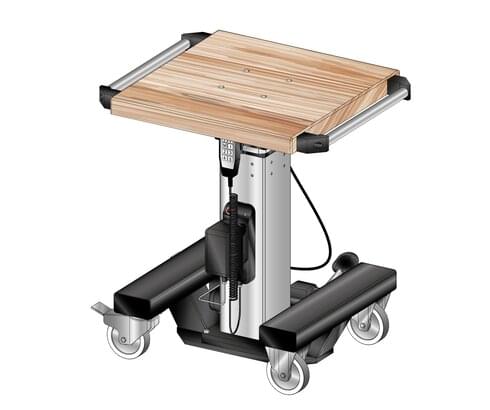

Mobile assembly trolley

Mobile assembly trolley
For workpieces up to 150 kg

Item number: 6400907

Electric lifting module with battery and 400 mm stroke
With vertical rotation axis DMv, infinitely rotatable
With foot pedal, manually unlockable index with 4x90
Sturdy table top in clear lacquered 50 mm beech multiplex 600x600 mm with 2 bow handles
Set-up on steel WMS 200 with brakes and 2 swivel castors and 2 fixed castors
Mains-independent power supply with a rechargeable battery system according to M8201 with memory function

6400985

Assembly and logistics trolley

Assembly and logistics trolley
For workpiece weights up to 150 kg

Part number: 6400985

Electric lifting module with battery and 400 mm stroke
Table top can be rotated infinitely by means of DMv
Index with 4x90° manually unlockable with foot pedal
Sturdy table top in clear lacquered 50 mm beech multiplex 600x600 mm with 2 bow handles
WMS 200 steel trolley module with brakes and 2 swivel castors and 2 fixed castors
Mains-independent power supply with a rechargeable battery system according to M8201 (up-down without memory function)

6400993

Stationary assembly station

Stationary assembly station
with lifting and turning functions
For workpieces up to 400 kg

Part number: 64009993

Stroke 300 mm with ShopFloor lifting module with electric drive
With vertical rotation axis DMve, infinite electric rotation with foot switch
Autostop every 90°
Stable stand on base plate 500x500mm made of steel
