On this page we show you some systems or functional units of moduhub components for handling technology. You can filter the systems according to the following criteria:
Industry: Industry in which the system can be used sensibly as a priority.
Function: Lifting, rotating (horizontally or vertically) and tilting or a combination of several functional axes.
Mobility: Stationary or mobile (movable) system.
Max. Load (kg): Maximum load or workpiece weight with which the system is to be loaded.
Stationary assembly station
with the functions lifting, turning-horizontal (tilting) and turning-vertical
For workpieces up to 80 kg
Part number: 6400885
- Stroke 300 mm with lifting module TwinStrong with electric drive
- With horizontal rotary axis DMhe-Solid (max. drive torque: 500 Nm) as tilting axis -90° to +90°
- With vertical rotation axis DMve
- Infinite, electric rotation; auto stop every 90°
- Stable stand on steel base plate
- Central operation outside the danger zone via control panel on the control cabinet
- Power supply 230V / 1P
Stationary assembly station
with the functions lifting, tilting and turning-vertical
For workpieces up to 70 kg
Part number: 6400898
- Stroke 300 mm with ShopFloor lifting module with electric drive with foot switch
- With tilting axis KMB, pneumatically supported
- 0-90° index can be released via foot pedal
- With vertical rotation axis DMv
- Infinite, manual rotation; index 4x90° can be released via foot pedal
- Stable stand on steel base plate 500x750 mm
- Media supply 230V/1P and compressed air 6 bar oiled

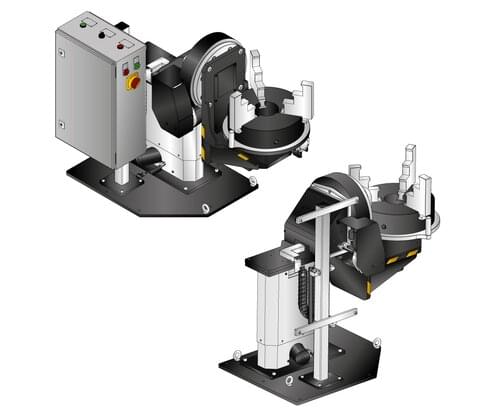

Stationary assembly station
with the functions lifting, turning-horizontal (tilting) and turning-vertical
For workpieces up to 170 kg
Part number: 6401054
- Stroke 300 mm with lifting module Twin-Strong with electric drive
- With horizontal rotary axis DMhe-Solid (max. drive torque: 500 Nm)
- Infinite, electric rotation; auto stop every 90°
- With vertical rotation axis DMve
- Infinite, electric rotation; Autostop every 90°
- Stable stand on steel base plate
- Central operation outside the danger zone via control panel on the control cabinet
- Power supply 230V/1P

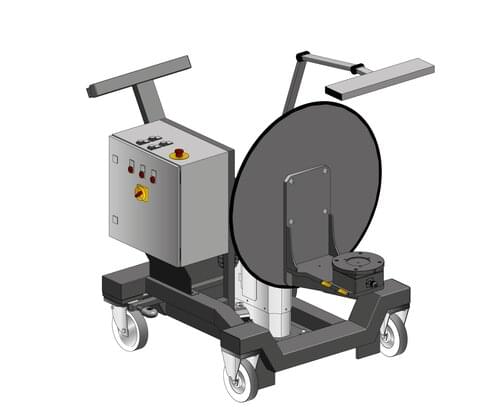

Mobile assembly device
with the functions lifting, rotating and tilting
for workpieces up to 85 kg
Part number 6401117
- with electrically operated lifting module TwinStrong, stroke: 400 mm
- with electrically operated rotary module Solid
- electrically driven with automatic locking positions: 4 x 90°
- with face plate as engagement protection
- 2nd axis manually operated Rotary module-vertical
- 360° rotating with indexing pin with one indexing position
- with specific flange for user-side mounting device
- mounted on a manually movable trolley module WMS and 4 castors
- Battery power supply (mains operation also possible), LED work light
