moduhub systems

for handling technology

On this page we show you some systems or functional units of moduhub components for handling technology. You can filter the systems according to the following criteria:
Industry: Industry in which the system can be used sensibly as a priority.
Function: Lifting, rotating (horizontally or vertically) and tilting or a combination of several functional axes.
Mobility: Stationary or mobile (movable) system.
Max. Load (kg): Maximum load or workpiece weight with which the system is to be loaded.

Please select:

Industries

Function

Mobility

Max. load (kg)

6400857

Stationary assembly station

Stationary assembly station with the functions lifting and turning-horizontal
For workpieces up to 100 kg

Part number: 6400857

Height-adjustable stroke 300 mm with lifting module Solid
(high load capacity and very smooth running due to roller guide)
With electric drive and foot switch
With horizontal rotary axis DMhe
(max. drive torque: 120 Nm)
Infinite, electric rotation by hand switch
Autostop every 90
Base plates according to M8.100 optionally available

6401029

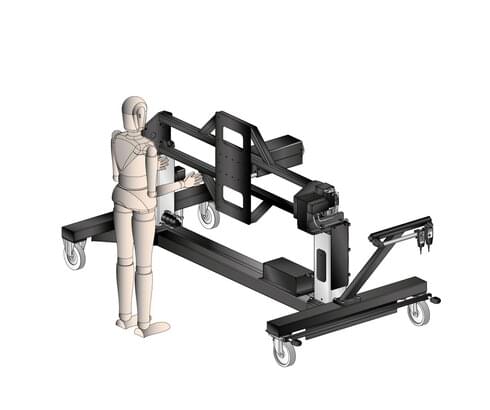

Mobile assembly and inspection station

Mobile assembly and inspection station
with the functions lifting and turning-horizontal
For workpieces up to 350 kg

Part number: 6401029 (only available on request)

Stroke 400 mm with 2 lifting modules ShopFloor in synchronisation with electric drive with manual switch
With horizontal tilting axis DMhe (max. drive torque: 200 Nm) with counter bearing with adjustable friction brake
Reversible tilting 0-90° by hand switch
Autostop in the end positions
Clamping width 1746 mm
Stable stand on welding frame with coupling brake and push handle
Power supply via 2 battery packs according to M8201

6401064

Stationary assembly station

Stationary assembly station
with the functions lifting and turning-horizontal
For workpieces up to 300 kg

Part number: 6401064

Height-adjustable stroke 400 mm with lifting module Solid (heavy-duty and very smooth-running due to roller guide) with foot pump
With horizontal rotary axis DMhe-Solid (max. drive torque: 500 Nm)
Infinite, electric rotation via foot switch
Autostop every 90°
Stable stand on 500x750 mm steel base plate

6401104

Stationary assembly station

Stationary assembly station
with the functions lifting and turning-horizontal
For workpieces up to 450 kg

Part number: 6401104

Stroke 400 mm with lifting module TwinStrong with electric drive with manual push-button
With horizontal rotary axis DMhe-Solid (max. drive torque: 500 Nm)
Infinite, electric rotation via foot switch
Autostop every 90°
With centring pin for easier retooling of workpieces or fixtures
Stable stand on 500x750 mm steel base plate

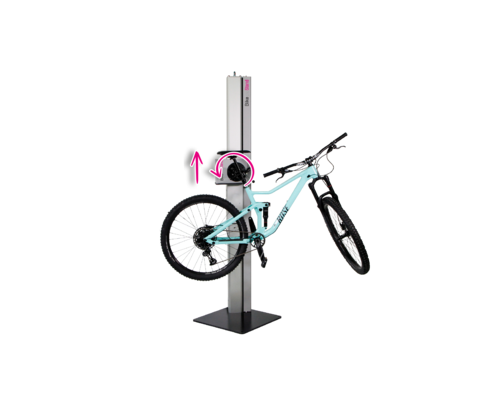

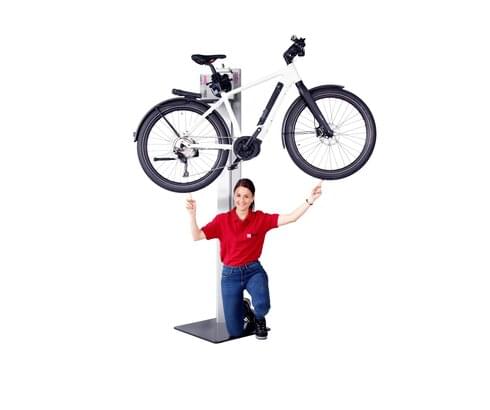

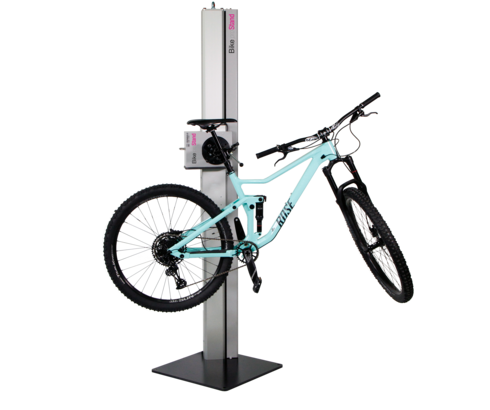

M 9.102 Bike proStand

Stationary assembly fixture

for bicycles, cargo bikes and e-bikes, electrically operated

Application
Bike proStand is a stationary, electrically operated assembly fixture for bicycles, cargo bikes and e-bikes weighing up to 40 kg. Without an electrical rotation axis it can accommodate up to 80 kg.is a stationary, electrically operated manipulator for handling and assembly of bicycles up to 40 kg weight.

Description
Due to the sturdy, industrial quality design Bike proStand can be used for both assembly and repair.

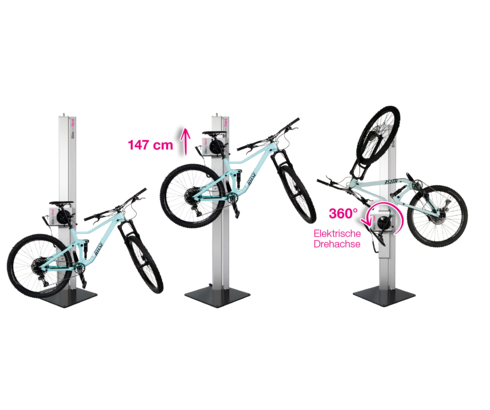

The lifting and rotation axis are electrically operated. Both axes are operated with a common hand panel. Since both axes are self-locking, each set position is held securely. The large stroke of 1470 mm makes it possible to lift the bicycles from the ground and bring them to an optimal assembly height. The rotation axis allows endless rotation at any height.
The lifting axis has a shutdown function if a collision occurs during lowering.
