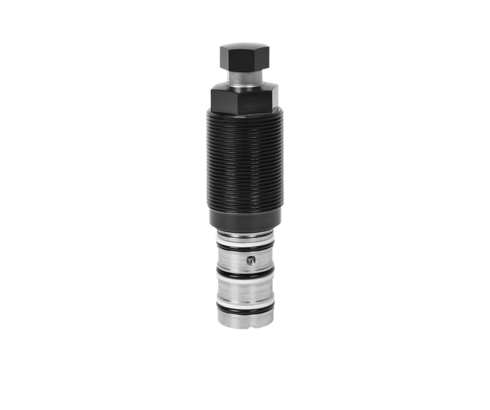

Threaded-Body Work Supports
optional contact control
double acting, max. operating pressure 500 bar
Hydraulic work supports are used to provide a self-adjusting rest for workpieces and avoid their vibration and deflection under machining loads.
The threaded-body design allows for space-saving and direct installation into the fixture body. Hydraulic oil supply and venting are made via drilled
channels. In case of the double-acting version the return stroke of the support plunger is effected in a precisely defined time, that is above all advantageous in cycle-dependent installations.
In the body of the threaded-body work support a thin-walled locking bush is integrated, which locks cylindrically around the freely-movable support plunger when pressurising the element with hydraulic oil. The support plunger is extended and retracted by means of a small double-acting cylinder. Contact to the workpiece is made by spring force. A pneumatic contact control is available as an option. The body with metallic wiper edge protects the subjacent FKM wiper against coarse and hot swarf.
Item no. | CAD data | Description |
---|---|---|
Item no.
|
CAD data
|
Description
Cover cap for 194X-3XX
as per data sheet B1.943
|
Item no.
|
CAD data
|
Description
Cover cap for 194X-4XX
as per data sheet B1.943
|
Item no.
|
CAD data
|
Description
Cover cap for 194X-5XX
as per data sheet B1.943
|
Item no.
|
CAD data
|
Description
Cover cap for 194X-6XX
as per data sheet B1.943
|
Item no.
|
CAD data
|
Description
Contact bolt M10
without pneumatic contact control
for threaded-body work support M30 x 1.5 mm
max. 500 bar, as per data sheet B1.944
|
Item no.
|
CAD data
|
Description
Contact bolt M12
without pneumatic contact control
for threaded-body work support M36 x 1.5 mm
max. 500 bar, as per data sheet B1.944
|
Item no.
|
CAD data
|
Description
Contact bolt M12
for pneumatic contact control
for threaded-body work support M36 x 1.5 mm
max. 500 bar, as per data sheet B1.944
|
Item no.
|
CAD data
|
Description
Contact bolt M10
for pneumatic contact control
for threaded-body work support M30 x 1.5 mm
max. 500 bar, as per data sheet B1.944
|
Item no.
|
CAD data
|
Description
Contact bolt M12
for pneumatic contact control
for threaded-body work support M48 x 1.5 mm
max. 500 bar, as per data sheet B1.944
|
Item no.
|
CAD data
|
Description
Contact bolt M12
for pneumatic contact control
for threaded-body work support M60 x 1.5 mm
max. 500 bar, as per data sheet B1.944
|
